SS Coil Tube Manufacturer, SS 304 Seamless Coil Tubing, SS 316 Coil Tube, SS Welded Coil Tubes, SS Coil Tube Manufacturer in India

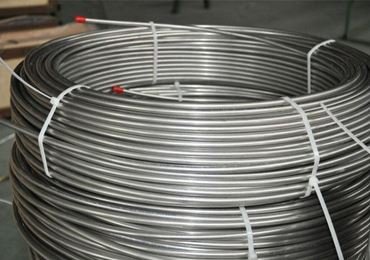

Tubetec Piping Solutions is a highly-recommended Stainless Steel Coil Tubes Manufacturer in India. Stainless Steel Coil Tubes are characterized by high heat transfer coefficients. These SS Coil Tube have a corkscrew type structure that allows for much surface area for heat exchange, to make either cooling or heating a quick operation. That makes them suitable to be used in conditions like heat exchangers, given the importance in heat transfer rate.
The other advantage associated with the polymers is that they have much higher strength and mechanical characteristics. Stainless Steel Coil Tube have good tensile strength to take pressure and temperature into consideration without failure. That makes them perfectly useful in application that need to perform well under some high operating conditions.
Stainless Steeel Coil Tube Specification
| Standard | ASTM A269 /ASME SA 269, ASTM A213/ASME SA213, EN10216-5, JIS G3463 |
| Tolerance | D4/T4 |
| Strength | Tensile, Burst |
| Hardness | Rockwell, Micro |
| Soundness Tests | Eddy Current, Ultrasonic |
| Leak & Strength | Hydrostatic |
| Value Added Services |
|
| Available sizes in stock |
|
| END | Plain End |
| Types & Their Application |
|
SS Coil Tube Supplier, Micro Capillary 316L Coiled Tube, 3/4 SS 316 Coiled Tubing, ASTM A269 Coil Tube, SS Coil Tube Manufacturer in India
Tubetec Piping Solutions is well-known Stainless Steel Coil Tube Manufacturer and Supplier in India. SS Coil Tubes are manufactured by pulling high quality stainless steel, for instance SS 316L, into thin coils. These SS Coil Tube are then coiled into the required shape and post finished with processes such as stress-relief and passivation. Then coiled into the desired shape and treated to improve strength and resistance to corrosion. Subsequently they undergo various tests to examine the dimension and quality hence suitable for industrial applications. We are also leading Stainless Steel Pressure Tubing Manufacturer in India.
Grades of Stainless Steel Coil Tube
Stainless Steel Coil Tube Schedule Chart
| NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
|
1/8″
|
|
|
|
|
|
|
1/4″
|
|
|
|
|
|
|
3/8″
|
|
|
|
|
|
|
1/2″
|
|
|
|
|
|
|
3/4″
|
|
|
|
|
|
|
1″
|
|
|
|
|
|
|
1 1/4″
|
|
|
|
|
|
|
1 1/2″
|
|
|
|
|
|
|
2″
|
|
|
|
|
|
|
2 1/2″
|
|
|
|
|
|
|
3″
|
|
|
|
|
|
|
4″
|
|
|
|
|
|
|
5″
|
|
|
|
|
|
|
6″
|
|
|
|
|
Stainless Steel Coil Tube Pressure Rating
| AVE. WALL INCHES | MIN YIELD STRENGTH (PSI) | MIN TENSILE STRENGTH (PSI) | THEORETICAL BURST PRESSURE * (PSI) | WORKING PRESSURE (PSI) 25% OF BURST | THEORETICAL YIELD POINT ** (PSI) | COLLAPSE PRESSURE *** (PSI) | |
| 0.250 | 0.020 | 30,000 | 75,000 | 14,286 | 3,571 | 5,714 | 4,416 |
| 0.250 | 0.028 | 30,000 | 75,000 | 21,649 | 5,412 | 8,660 | 5,967 |
| 0.250 | 0.035 | 30,000 | 75,000 | 29,167 | 7,292 | 11,667 | 7,224 |
| 0.250 | 0.049 | 30,000 | 75,000 | 48,355 | 12,089 | 19,342 | 9,455 |
| 0.250 | 0.065 | 30,000 | 75,000 | 81,250 | 20,313 | 32,500 | 11,544 |
| 0.375 | 0.020 | 30,000 | 75,000 | 8,955 | 2,239 | 3,582 | 3,029 |
| 0.375 | 0.028 | 30,000 | 75,000 | 13,166 | 3,292 | 5,266 | 4,145 |
| 0.375 | 0.035 | 30,000 | 75,000 | 17,213 | 4,303 | 6,885 | 5,077 |
| 0.375 | 0.049 | 30,000 | 75,000 | 26,534 | 6,634 | 10,614 | 6,816 |
| 0.375 | 0.065 | 30,000 | 75,000 | 39,796 | 9,949 | 15,918 | 8,597 |
| 0.500 | 0.020 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,304 |
| 0.500 | 0.028 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
| 0.500 | 0.035 | 30,000 | 75,000 | 12,209 | 3,052 | 4,884 | 3,906 |
| 0.500 | 0.049 | 30,000 | 75,000 | 18,284 | 4,571 | 7,313 | 5,304 |
| 0.500 | 0.065 | 30,000 | 75,000 | 26,351 | 6,588 | 10,541 | 6,786 |
| 0.500 | 0.083 | 30,000 | 75,000 | 37,275 | 9,319 | 14,910 | 8,307 |
| 0.625 | 0.020 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
| 0.625 | 0.028 | 30,000 | 75,000 | 7,381 | 1,845 | 2,953 | 2,568 |
| 0.625 | 0.035 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
| 0.625 | 0.049 | 30,000 | 75,000 | 13,947 | 3,487 | 5,579 | 4,335 |
| 0.625 | 0.065 | 30,000 | 75,000 | 19,697 | 4,924 | 7,879 | 5,591 |
| 0.625 | 0.083 | 30,000 | 75,000 | 27,124 | 6,781 | 10,850 | 6,910 |
| 0.625 | 0.095 | 30,000 | 75,000 | 32,759 | 8,190 | 13,103 | 7,734 |
| 0.625 | 0.109 | 30,000 | 75,000 | 40,172 | 10,043 | 16,069 | 8,639 |
| 0.750 | 0.028 | 30,000 | 75,000 | 6,052 | 1,513 | 2,421 | 2,156 |
| 0.750 | 0.035 | 30,000 | 75,000 | 7,721 | 1,930 | 3,088 | 2,669 |
| 0.750 | 0.049 | 30,000 | 75,000 | 11,273 | 2,818 | 4,509 | 3,664 |
| 0.750 | 0.065 | 30,000 | 75,000 | 15,726 | 3,931 | 6,290 | 4,749 |
| 0.750 | 0.083 | 30,000 | 75,000 | 21,318 | 5,330 | 8,527 | 5,905 |
| 0.750 | 0.095 | 30,000 | 75,000 | 25,446 | 6,362 | 10,179 | 6,637 |
| 0.750 | 0.109 | 30,000 | 75,000 | 30,733 | 7,683 | 12,293 | 7,453 |
| 0.750 | 0.120 | 30,000 | 75,000 | 35,294 | 8,824 | 14,118 | 8,064 |
| 0.875 | 0.020 | 30,000 | 75,000 | 3,593 | 898 | 1,437 | 1,340 |
| 0.875 | 0.028 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
| 0.875 | 0.035 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,304 |
| 0.049 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 | |
| 0.875 | 0.065 | 30,000 | 75,000 | 13,087 | 3,272 | 5,235 | 4,126 |
| 0.875 | 0.083 | 30,000 | 75,000 | 17,560 | 4,390 | 7,024 | 5,152 |
| 0.875 | 0.095 | 30,000 | 75,000 | 20,803 | 5,201 | 8,321 | 5,807 |
| 0.875 | 0.109 | 30,000 | 75,000 | 24,886 | 6,221 | 9,954 | 6,543 |
| 0.875 | 0.120 | 30,000 | 75,000 | 28,346 | 7,087 | 11,339 | 7,100 |
| 1.000 | 0.028 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
| 1.000 | 0.035 | 30,000 | 75,000 | 5,645 | 1,411 | 2,258 | 2,027 |
| 1.000 | 0.049 | 30,000 | 75,000 | 8,149 | 2,037 | 3,259 | 2,796 |
| 1.000 | 0.065 | 30,000 | 75,000 | 11,207 | 2,802 | 4,483 | 3,647 |
| 1.000 | 0.083 | 30,000 | 75,000 | 14,928 | 3,732 | 5,971 | 4,567 |
| 1.000 | 0.095 | 30,000 | 75,000 | 17,593 | 4,398 | 7,037 | 5,159 |
| 1.000 | 0.109 | 30,000 | 75,000 | 20,908 | 5,227 | 8,363 | 5,827 |
| 1.000 | 0.120 | 30,000 | 75,000 | 23,684 | 5,921 | 9,474 | 6,336 |
| 1.000 | 0.134 | 30,000 | 75,000 | 27,459 | 6,865 | 10,984 | 6,963 |
| 1.250 | 0.035 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
| 1.250 | 0.049 | 30,000 | 75,000 | 6,380 | 1,595 | 2,552 | 2,260 |
Stainless Steel Coil Tube Chemical Compositions
| STAINLESS STEEL Coil TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Stainless Steel Coil Tube Mechanical Compositions
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
Application of Stainless Steel Coil Tube
-
Energy industries
-
Chemicals
-
Modern Architecture
-
Textile Machinery
-
Construction
-
Oil & Gas Industry
-
Ship Building
-
Pulp and Paper
