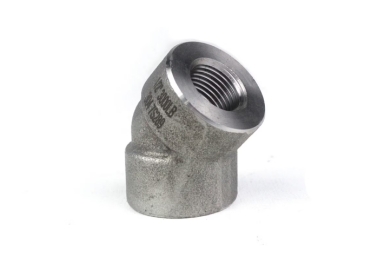

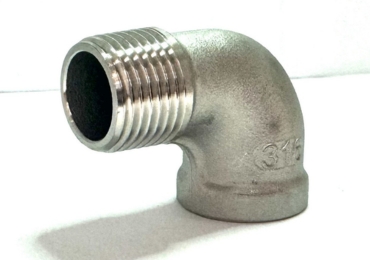

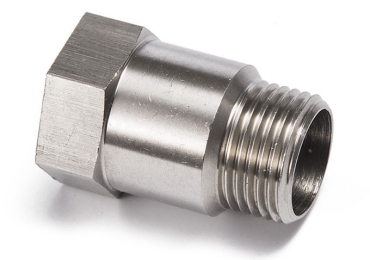

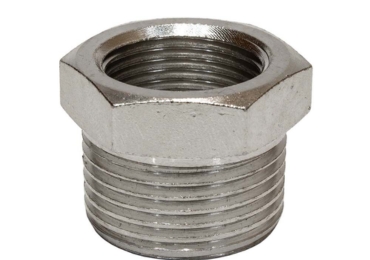

Forged Fittings Stockist, Forged Fittings 45 Degree Elbow, Forged Fittings Street Elbow Exporter, Forged Fittings Bushing, Forged Fittings Insert Manufacturer in India
Tubetec Piping Solutions is a Largest Forged Fittings Manufacturer in India. Proposed high-efficiency Forged Fittings in the range of sizes 1/8inch NB to 24 inch NB and 1/4inch OD to 24 inch OD with a thickness ranging between 0.6mm and 20mm. Our fittings are supplied according to different schedules, such as SCH5, SCH10, SCH40, STD, SCH80, SCH120, and XXS, to be strong and reliable in any application. We supply the whole assortment, like Forged Fittings 45 Degree Elbow, Forged Fittings Bushing, and are a reliable Forged Fittings Stockist that meets the various industrial requirements.
Being one of the trusted Forged Fittings Street Elbow Exporters and Forged Fittings Insert Manufacturers in India, we ensure our accuracy in dimensions, which are standardized in terms of DN and Nominal Pipe Size. We design our Forged Fittings in terms of precision in center-to-end product measurements and wall thickness to facilitate durability and stable efficiency.
Forged Fittings Specification
| Forged Fittings | Specifications |
| Forged Fittings Types | Socket Weld Fittings: Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap. |
| Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120,SCH140, SCH160, XXS |
| Size | 1/8″NB to 24″NB & 1/4″OD TO 24″OD AND 6.35mm to 254mm OD Thickness: 0.6mm to 20mm |

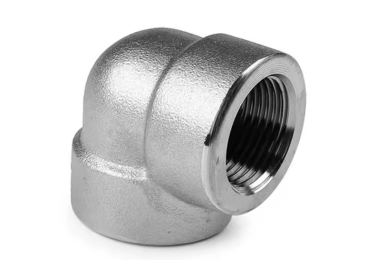

| Type | 90, 45, Tee, Cross, Coupling, Reducing Coupling, Bushing, Cap, O’Let. |
| Grades | |
| Stainless Steel | ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L |
| Super Duplex Steel | S32750 |
| Duplex Steel | ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
| Carbon Steel | ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91 |
| Alloys Steel | ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91. |
| Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 |
| Titanium | Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
| Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
| Molybdenum | ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum |
| Cobalt | Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21 |
| Niobium | ASTM B394, R04200 R04210 |
| Nimonic | Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc |
| Tungsten | W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten |
| Nichrome | Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc |
| Magnesium | Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc. |
| Tantalum | Tantalum – Grade 1. |
| Monel | Monel 400, Monel k500 |
| MU-METAL | MU-METAL |
| Zirconium | Zirconium 702, Zirconium 705, Zirconium 705, Zirconium-2, Zirconium-4 |
| Beryllium Copper | Alloy 25 UNSC17200 |
| Aluminium | 1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175 |
| Copper Alloys | C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000 |

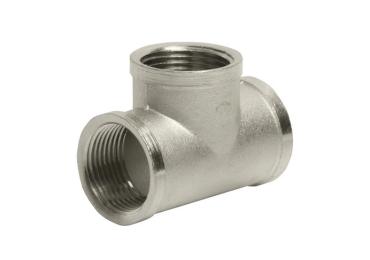

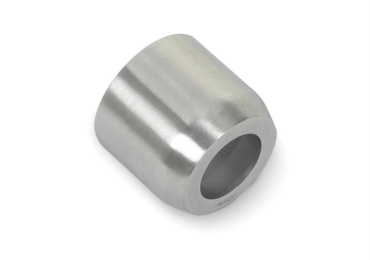

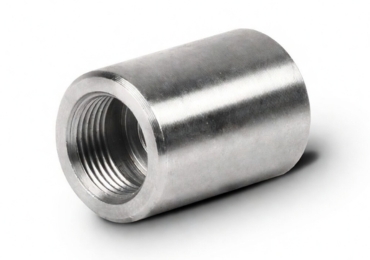

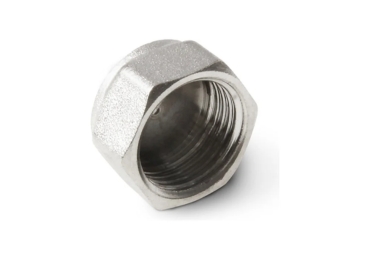

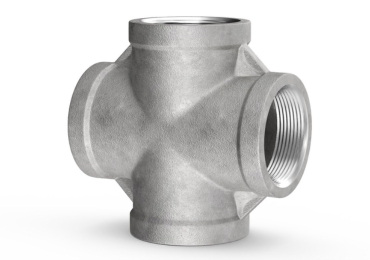

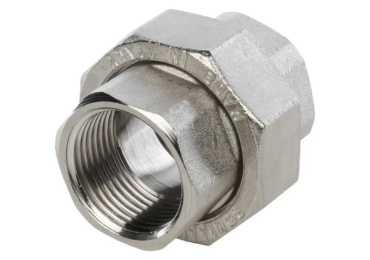

Forged Fittings Equal Exporter, Forged Fittings Cross, Forged Fittings Coupling Supplier, Forged Fittings End Cap, Forged Fittings Boss Stockist, Forged Fittings Union Manufacturer in India
Tubetec Piping Solutions is a noteworthy Forged Fittings Manufacturer & Supplier in India, We supply a lot of forged components in the type of 90, 45, tee, cross, coupling, reducing coupling, bushing, cap, and O’Let, the components are manufactured with ASTM/ASME SA350 LF2, SA182 F304/L, and F316/L, which supply highly strong components disturbing strongly immersive forces. Our Ferrule Fittings line-up consists of Forged Fittings Cross and Forged Fittings End Cap. We are a reliable Forged Fittings Equal Exporter, Forged Fittings Boss Stockist, and Forged Fittings Union Manufacturer in India with sizes as large as 254mm OD and thickness between 0.6mm and 20mm. We are also leading Ferrule Fittings Manufacturer in India.
Types of Forged Fittings
Contact Us Now!
Send a RFQ now and Get the Best Prices for SS Pipes and Tubes.
Forged Fittings Dimensions Chart
| DN | Nominal Pipe Size | Center to End Elbow, Tee, Cross A | Center to End 45 Deg. Elbow C | Outside Diameter of Bend H | Minimum Wall Thickness G | ||||||||
| 2000 | 3000 | 3000 | 2000 | 3000 | 3000 | 2000 | 3000 | 3000 | 2000 | 3000 | 3000 | ||
| 6 | 1/8* | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 |
| 8 | 1/4* | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 |
| 10 | 3/8* | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 |
| 15 | 1/2* | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 |
| 20 | 3/4* | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 |
| 25 | 1* | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 |
| 32 | 1-1/4* | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 |
| 40 | 1-1/2* | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 |
| 50 | 2* | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 84 | 102 | 4.27 | 7.14 | 12.09 |
| 65 | 2-1/2* | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 |
| 80 | 3* | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 |
Forged Fittings Weight Chart
| Size | Product (Lbs) |
1/8” | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1-1/4” | 1-1/2” | 2” | 2-1/2” | 3” | 4” | |
| 90 Elbow | 3000 | 0.09 | 0.08 | 0.12 | 0.22 | 0.33 | 0.53 | 0.84 | 1.08 | 1.68 | 3.2 | 5.38 | 10.95 |
| 6000 | 0.1 | 0.15 | 0.29 | 0.4 | 0.73 | 1.17 | 1.48 | 2.79 | 3.28 | ||||
| 45 Elbow | 3000 | 0.08 | 0.07 | 0.11 | 0.2 | 0.28 | 0.42 | 0.69 | 0.8 | 1.35 | 2.53 | 5.1 | 9.41 |
| 6000 | 0.09 | 0.14 | 0.26 | 0.36 | 0.57 | 0.92 | 1.11 | 2.01 | 2.09 | ||||
| Tee | 3000 | 0.13 | 0.09 | 0.15 | 0.29 | 0.42 | 0.65 | 1.04 | 1.35 | 2.04 | 3.98 | 5.9 | 13.92 |
| 6000 | 0.14 | 0.2 | 0.43 | 0.56 | 0.94 | 1.49 | 1.93 | 3.37 | 3.95 | ||||
| Cross | 3000 | 0.16 | 0.13 | 0.2 | 0.35 | 0.47 | 0.73 | 1.12 | 1.58 | 2.25 | 4.37 | 6.69 | 14.58 |
| 6000 | 0.17 | 0.26 | 0.45 | 0.67 | 1.07 | 1.75 | 2.26 | 3.96 | 4.42 | ||||
| Full Coupling | 3000 | 0.04 | 0.05 | 0.07 | 0.13 | 0.17 | 0.29 | 0.45 | 0.59 | 0.86 | 1.4 | 1.78 | 2.85 |
| 6000 | 0.05 | 0.07 | 0.114 | 0.204 | 0.27 | 0.44 | 0.6 | 1.11 | 1.62 | ||||
| Half Coupling | 3000 | 0.04 | 0.05 | 0.07 | 0.13 | 0.21 | 0.3 | 0.34 | 0.66 | 1.09 | 1.63 | 2.1 | 3.71 |
| 6000 | 0.06 | 0.09 | 0.12 | 0.21 | 0.31 | 0.51 | 0.75 | 1.25 | 1.92 | ||||
| Red Coupling | 3000 | 0.04 | 0.05 | 0.07 | 0.13 | 0.19 | 0.27 | 0.49 | 0.59 | 0.97 | 1.42 | 1.88 | 3.31 |
| 6000 | 0.24 | 0.33 | 0.65 | 0.75 | 1.2 | 2.12 | |||||||
| Cap | 3000 | 0.03 | 0.04 | 0.07 | 0.1 | 0.16 | 0.25 | 0.45 | 0.59 | 0.96 | 0.43 | 2.74 | 4.24 |
| 6000 | 0.05 | 0.08 | 0.1 | 0.16 | 0.23 | 0.36 | 0.64 | 0.94 | 1.41 | ||||
| Union | 3000 | 0.28 | 0.28 | 0.25 | 0.35 | 0.49 | 0.81 | 1.1 | 1.61 | 2.16 | 3.5 | 5.15 | 11.59 |
Application of Forged Fittings
-
Energy industries
-
Chemicals
-
Modern Architecture
-
Textile Machinery
-
Construction
-
Oil & Gas Industry
-
Ship Building
-
Pulp and Paper
